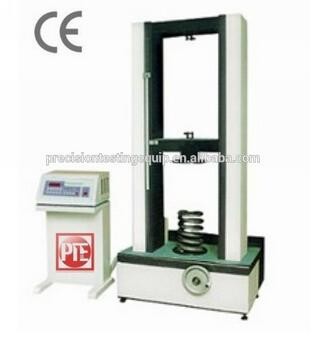

TLS-S200 Digital Display Spring Tension & Compression Testing Machine

Brand Name : PTE

Model Number : TLS-S200 Digital Display Spring Tension & Compression Testing Machine

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T, Western Union

Delivery Time : wooden case

Packaging Details : within 10 days after the confirmed order

Usage : Universal Testing Machine

standards : ASTM, DIN, BS, JIS, GB, etc.

test material : metal,plastic,rubber,spring, all kinds of rope material

fields : metallurgy, machinery, building engineering,industry,lab,factory

Load accuracy : ≤±1%

Contact Now

TLS-S200 Digital Display Spring Tension & Compression Testing Machine

Product Characteristic:

TLS-S series of spring tension & compression testing machine adopts integrated circuit and micro-computer to test the 2 parameters of displacement and load and to digitally display their values, as well as printing out the testing results. Hand loaded, the machine can pre-set the upper & lower limit load of 4 test points and auto judge the qualification of the 4 test points. It can also automatically revise displacement of load cell. Generally, the machine has functions of peak value holding, overload protection, zero clearing at any test point, stiffness calculation, data retrieval,etc. It is suitable for testing of various precision extension and compression springs and intensity measuring of brittle materials.

Max test load(N)	200
Min. resolution of test load(N)	2
Load accuracy	±1%
Min. resolution of vernier (mm)	0.05
Max. distance between 2 tension hooks (mm)	270
Max. distance between compression plates (mm)	250
Diameter of platens(mm)	110
Manual feeding	manual

TLS-S200 Digital Display Spring Tension & Compression Testing Machine

Three Star Service :
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
TLS-S200 Digital Display Spring Tension & Compression Testing Machine

Cheap TLS-S200 Digital Display Spring Tension & Compression Testing Machine for sale

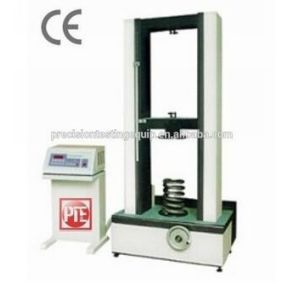

TLS-S200 Digital Display Spring Tension & Compression Testing Machine Images
